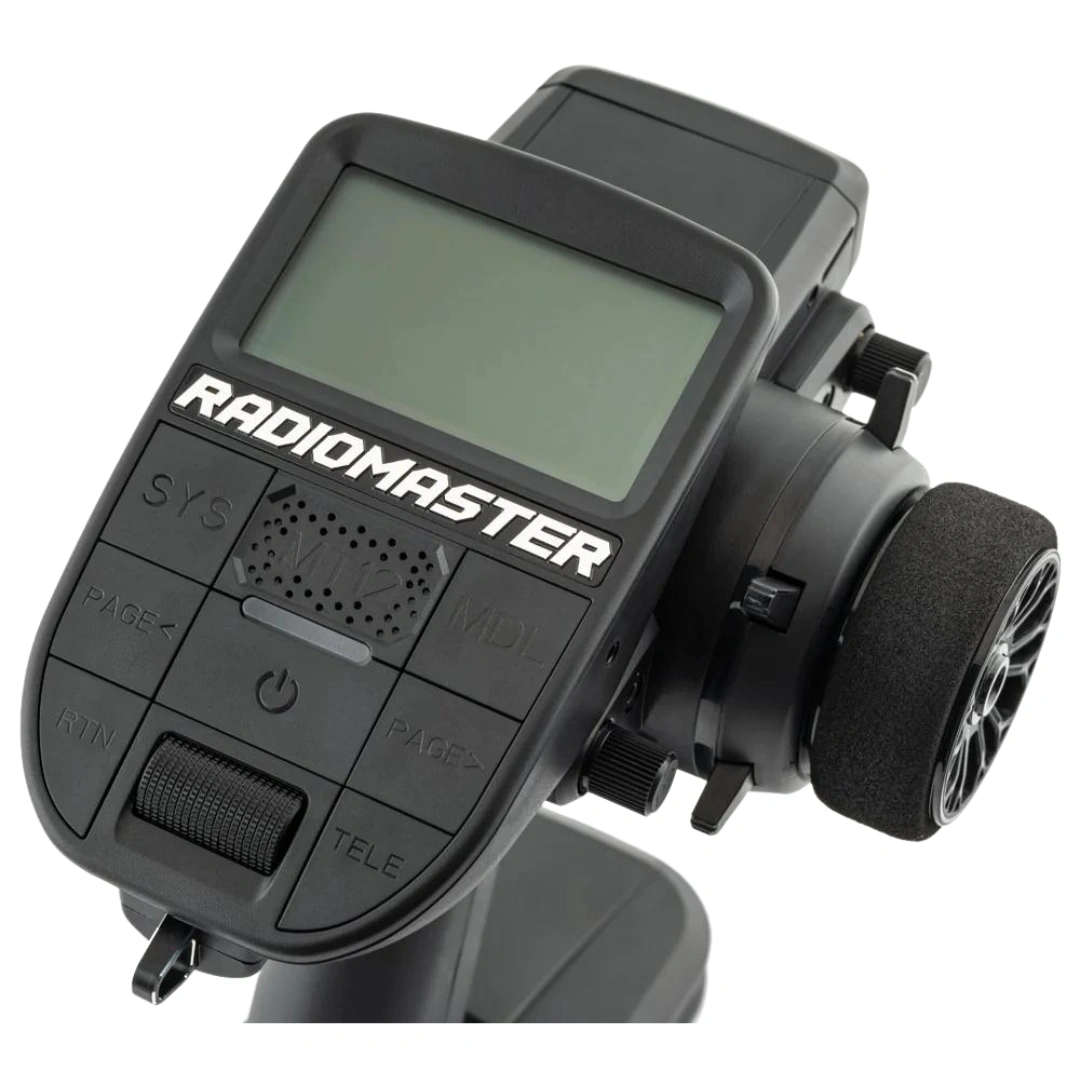

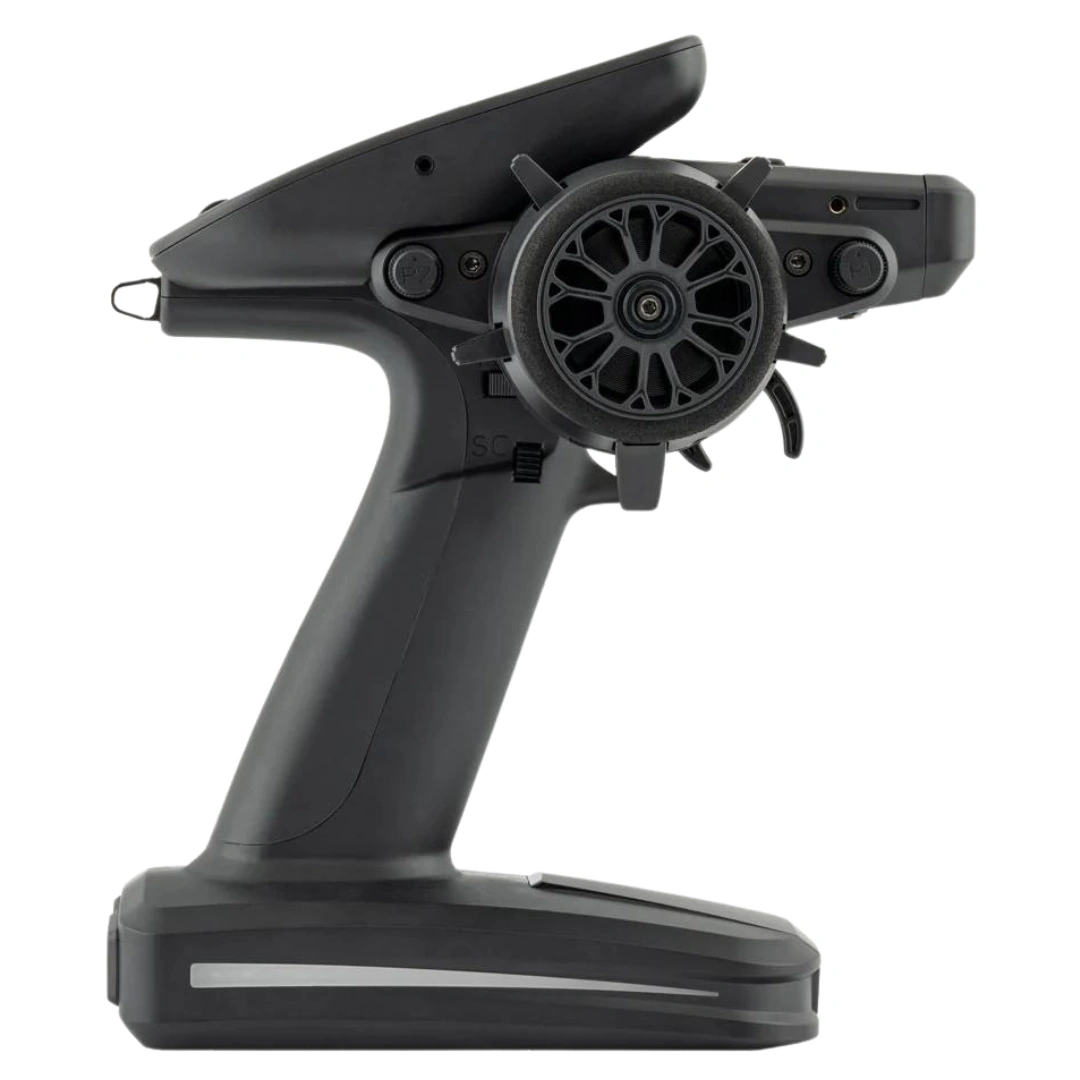

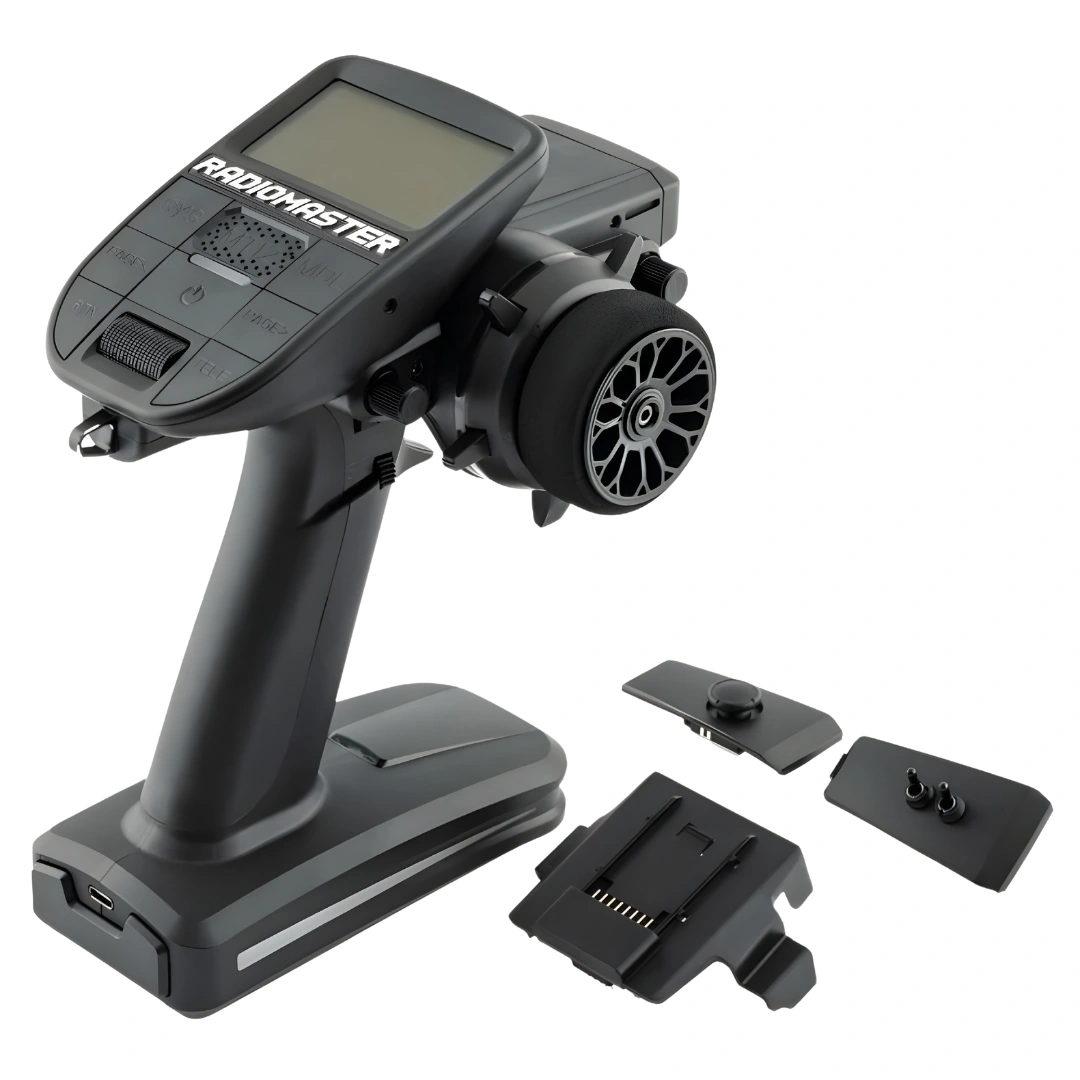

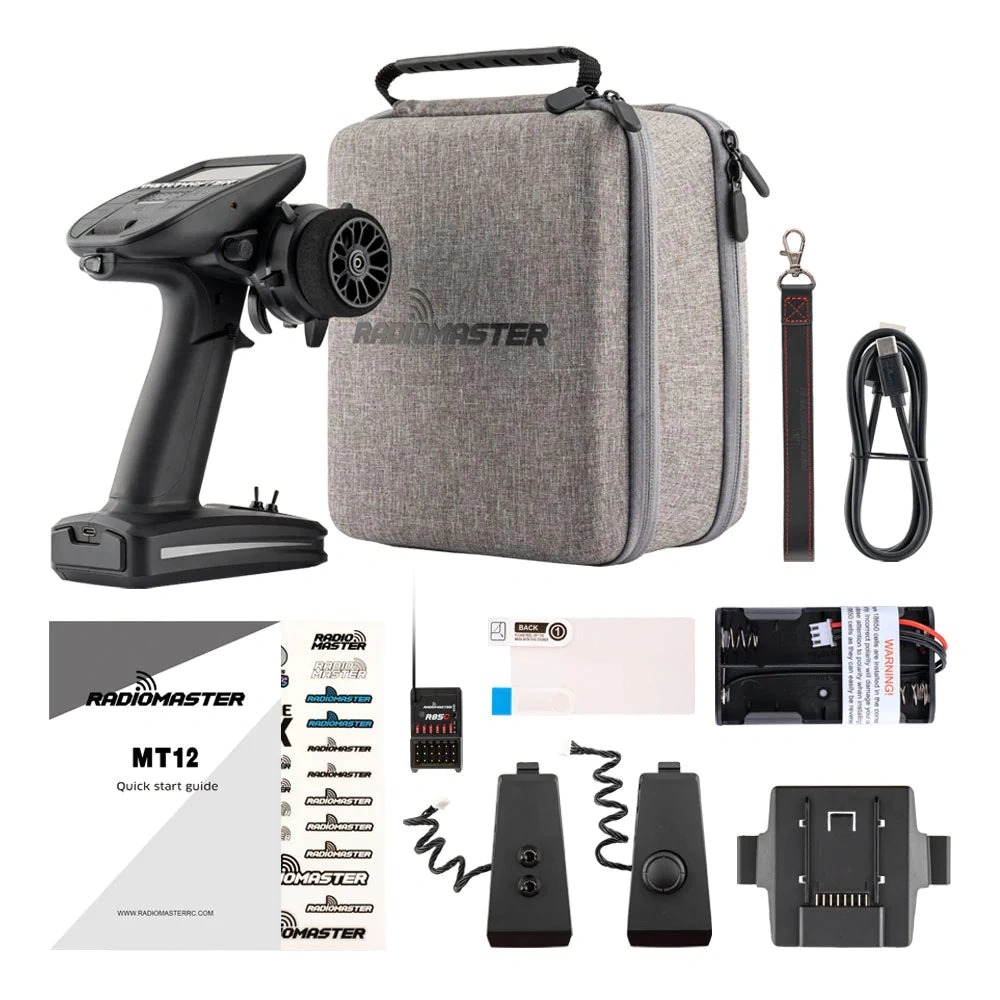

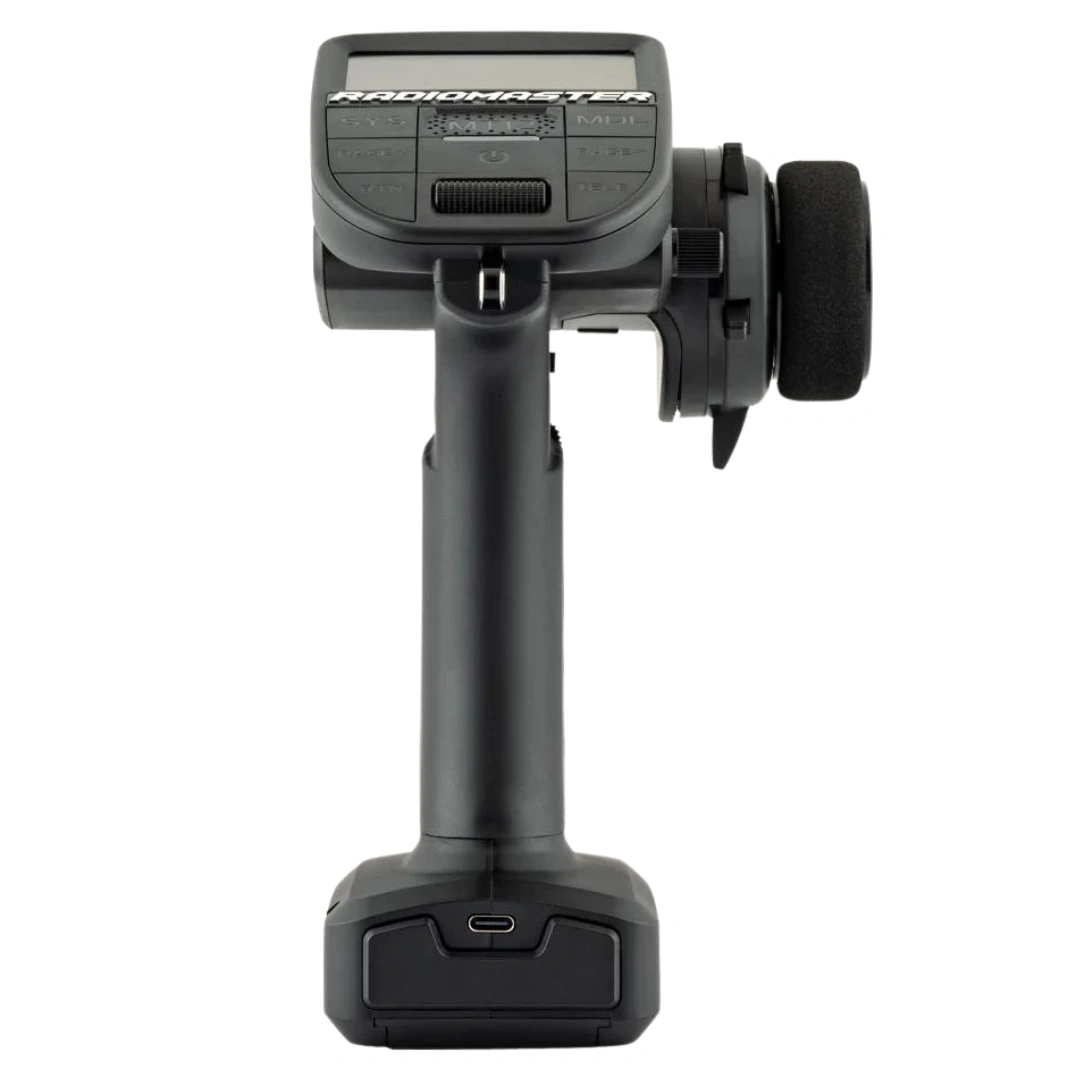

RadioMaster MT12 Transmitter Review & Features 2.4GHz RC Drone

RadioMaster MT12 RC Transmitter Kit for FPV Racing Drones

Unleash your inner adventurer with this effortlessly cool find a vintage-inspired marvel ready to spark joy and elevate your everyday vibe snag this one-of-a-kind treasure before it vanishes into the style stratosphere

$139.98 $279.95

num:

description

The RadioMaster MT12 16-Channel 2.4GHz Radio System is a total game-changer in the remote control world! It's not just any surface radio; it's the first one officially backed by EdgeTX, ExpressLRS, and the Multi-module project. This bad boy packs in 10 physical inputs and can handle 16 or even up to 32 channels*! From cars to trucks and boats, it's ready for any model you throw its way. What sets it apart? You can tweak it to your heart's content! Seriously, this thing's customizable in ways you've never seen in a surface radio before.

The MT12 comes loaded with EdgeTX, which is one of the most up to date and customizable software's available. Additionally the EdgeTX team is constantly pumping out updates giving you even more functionality making this transmitter futureproof like abilities. Available in two options this transmitter comes pre-equipped with an internal 2.4GHz ExpressLRS (ELRS) module for long-range control with lightning-fast response times or the 4-in-1 version, allowing you to control all your rides with different protocols. It's like the universal remote of RC cars!

The MT12 from RadioMaster isn't your run-of-the-mill surface radio. It's changing the game, giving you the power to fine-tune and control your models like never before. Backed by cutting-edge collaborations and a customizable setup, it's the new benchmark in controller tech, and it's all about bringing your RC game to a whole new level.

Features

Open-Source Compatibility: Supported by EdgeTX, ExpressLRS, and the Multi-module project
Customizable Configurations: Adaptable for a wide range of surface models, offering 16 or expandable to 32 channels*
EdgeTX Firmware: Preinstalled cutting-edge software designed for surface models
Internal RF Options: Available with either a 4-in-1 multi-protocol module or ELRS 2.4GHz module for long-distance, low-latency control
Powerful Hardware: Equipped with an STM32F407VGT6 with 1MB Flash for enhanced performance
Compact and Ergonomic Design: Compact build with excellent ergonomics and a rotatable antenna for convenience
Battery Compatibility: Oversized compartment accommodates 2x18650 cells or a 2S 7.4v 5000mAh battery pack

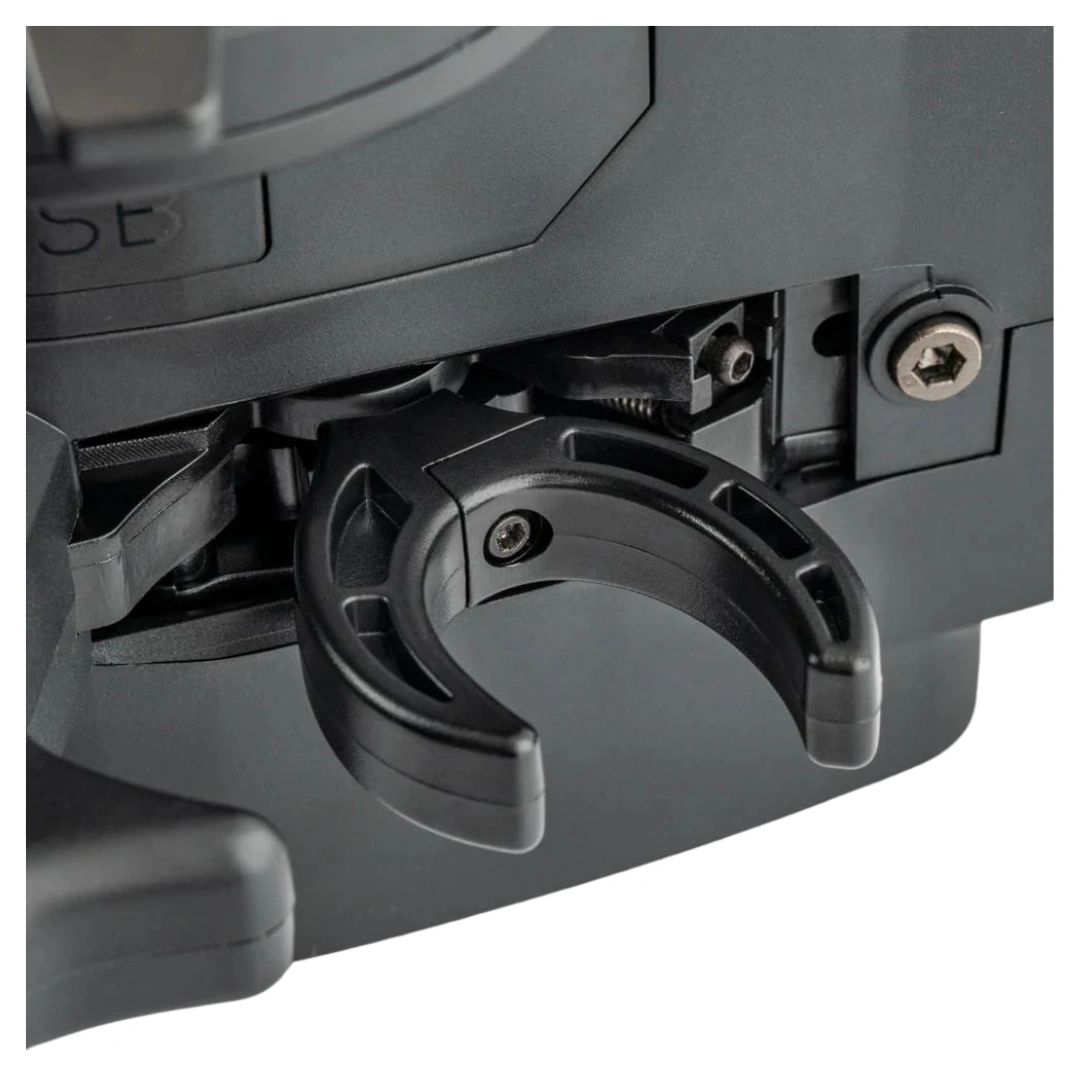

Adjustability: Trigger and Wheel feature adjustable tension and positions
Hall Sensors: Contactless Hall Sensors combined with ball bearings provide precision control and virtually zero maintenance.
10 Physical Inputs: Provides an incredible amount of control options ideal for almost any surface vehicle application
RGB Lighting: Customizable RGB LED lighting makes your radio stand apart in style!

Specifications

MT12 Transmitter:

Dimensions (LxWxH): 177.8x118.4x207.8mm
Weight: 480g
Operating Frequency: 2.400GHz-2.480GHz
Internal RF Options: 4-in-1 multi-protocol / ELRS 2.4GHz
Supported Protocols: Module dependent
Operational Current: 160mA for 4-in-1 / 320mA for ELRS
Operational Voltage: DC 6.6-8.4V
Operating System: EdgeTX
Channels: 16 as standard, ability for expansion 32 Channels (4-in-1 only)
Display: 128x64 Monochrome LCD
Battery: 2x18650 cells or a 2S 7.4v 5000mAh battery pack (Batteries not included)
Charging: Built-in USB-C Charging
Firmware Upgrade Method: Via USB or SD card
Wheel and Trigger Sensor: Hall-effect
Module bay: Nano size (RadioMaster Ranger Nano Module / RadioMaster RM 4-in-1 module / TBS Crossfire Nano module)

R85C Receiver:
